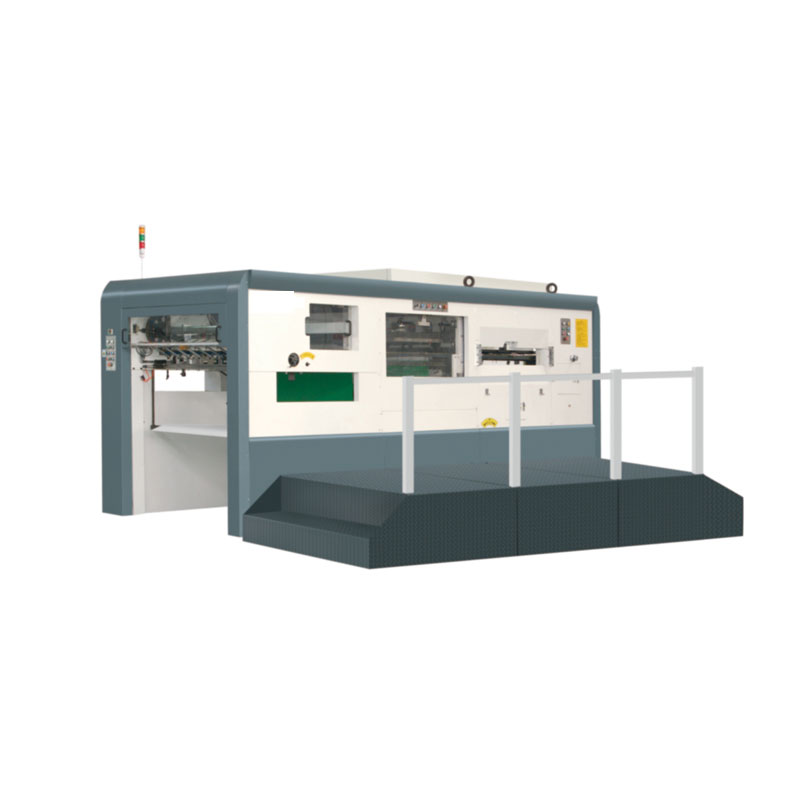

Semi Automatic Die Cutting Machines

Semi automatic die cutting & creasing machine adopts super-hard alloy hollow gripper, advanced open mechanism gripper is available for all types of paperboard and corrugated board, locating devices keep paper accuracy. With the programmable controller and man-machine interface, the digital display working speed, amount of paper processed and total running time. It makes easier operation to clean trouble with machine fault display. Smooth operation and stepless speed changing with application of frequency control of the main motor. It has sensors and safety devices to guarantee the normal operation and person safety. Cutting pressure can be adjusted individually, can also die cutting without gripper, is a suitable equipment for high-end boxes.

Technical Data

Max. paper size 1300mm*950mm/51.18in*37.40in
Min. paper size 500mm*450mm/19.69in*17.72in
Max.die cutting size 1270mm*920mm/50in*36.22in
Paper available size Corrugated board E B C A AB (1-7mm)
Max. die cutting pressure 300t
Range of pressure adjustment ±1mm/0.039in
Cutting rule height 23.8mm/0.94in
Die cutting precision ≤±0.25mm/0.0098in
Max. Speed 4200S/H
Front margin Corrugated board 10mm/0.39in Laminated corrugated board 12mm/0.47in
Rated power 14.5KW
Voltage 380V±5% 50Hz
Max. paper size 1520mm*1120mm/59.84in*44.10in
Min. paper size 500mm*450mm/19.69in*17.72in
Max.die cutting size 1490mm*1100mm/58.66in*43.31in
Paper available size Corrugated board E B C A AB (1-7mm)
Max. die cutting pressure 300t
Range of pressure adjustment ±1mm/0.039in
Cutting rule height 23.8mm/0.94in
Die cutting precision ≤±0.25mm/0.0098in
Max. Speed 4200S/H
Front margin Corrugated board 10mm/0.39in Laminated corrugated board 12mm/0.47in
Rated power 17.8KW
Voltage 380V±5% 50Hz
