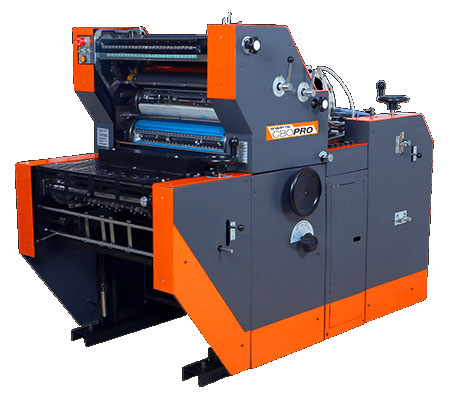

Swifts CBO Pro
With an eye on helping its customers capture the growing eco-friendly bag market, Swifts brings to you the CBO, the best solution to print bags along with all other regular offset applications on the same machine.
Applications (Most Suitable For)
Non-woven bags | Office stationery | General stationery | Local newspapers and magazines | Computer forms for dot matrix
Sailent Features (‘2-IN-1’ Technology)
- Ideal for non-woven bags
- Based on the technology of the paragon of print quality, the Swifts Advent Plus
- Prints paper with ease as much as bags
Technical Data
| Model : Advent CBO | |
| Sheet Size (max) | 508 x 381 mm (20″ x 15″) |
| Sheet Size (min) | 203 x 152 mm (8″ x 6″) |
| Max. Printing Area | 508 x 355 mm (20″ x 14″) |
| Minimum Gripper Margin | 10 mm |
| Speed | 1500 – 5000 iph* |
| Stock Handled | 30 gsm – 250 gsm |
| Plate Size | 520 x 400 mm |
| Plate Thickness Max | 0.3mm (0.1mm master with pkg) |
| Plate Gripper Margin | 25.4 mm |
| Blanket Size | 525 x 420 x 1.9 mm |
| Feeder capacity | 120 mm |
| Delivary Capacity | 430 mm |
| Drive Motor | 1 Phase, 0.75 HP D.C Forward-Reverse Inching Facility and Emergency Stop |
| Pump Motor | 1 Phase, 0.75 HP A.C. |
| Electrical Supply Rating | 1 Phase , 230V HP A.C. |
| Inker | No. of Rollers : 11 (Including 2 form) |
| Dampener | No. of Rollers : 4 (Including 1form) |
| Dimensions (LxWxH) | 1836 x 1275 x 1425 mm |
| Weight | 935 kg. |
