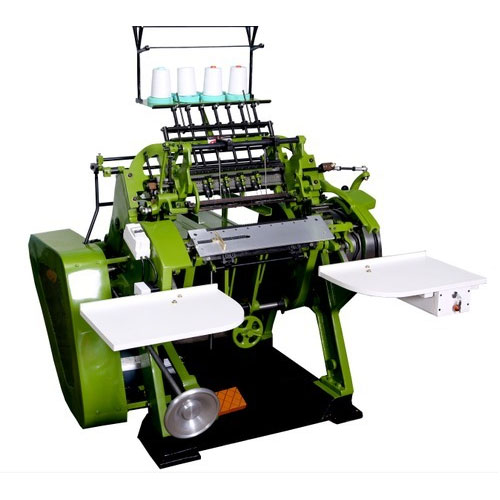

Thread Sewing Machine

We offer three latest models of thread book sewing machines. These machines can be supplied with mechanical operation, electro magnetic clutch & brake with push button controls and with chain feeding options.

Technical Data

Model	2000	2500	3000	3500	5000
Largest Size of book	18″ x 9″	24″ x 9″	18″ x 9″	24″ x 9″	24″ x 13″
Smallest Size of book	4^1/2″ x 4″	4^1/2″ x 4″	4^1/2″ x 4″	4^1/2″ x 4″	4^1/2″ x 4″
Number of Stitches	up to 7sets	up to 9 sets	up to 7sets	up to 9 sets	up to 9 sets
Capacity	70 Sec./Min	70 Sec./Min	70 Sec./Min	70 Sec./Min	50 Sec./Min
Power Required	^1/2 Hp/0.37 KW	^1/2 Hp/0.37 KW	^1/2 Hp/0.37 KW	^1/2 Hp/0.37 KW	^1/2 Hp/0.37 KW
Magnetic Clutch	without	without	with	with	with
Automatic Lubrication Sys.	without	without	with	with	with
