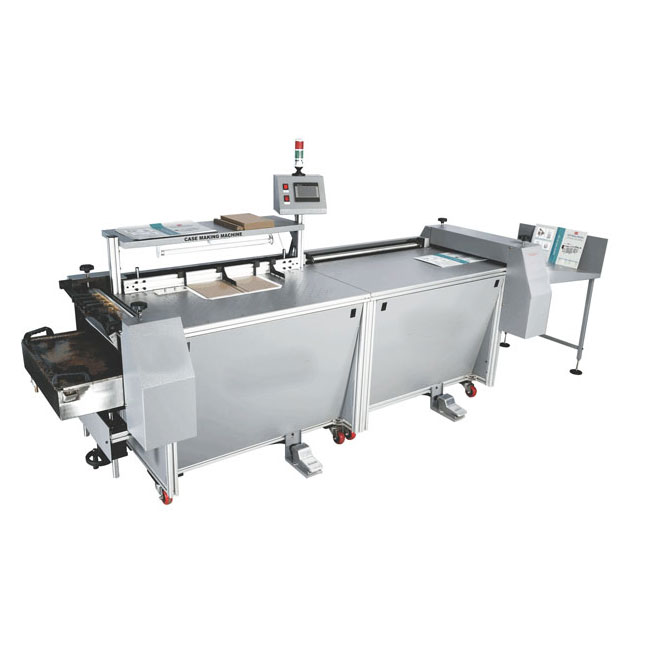

Case Making Machine

Case Maker consists of Manual Gluing Station for Hot Melt & Cold Glue, Board Placement with Pneumatic Control, Turning-in Station and Pressing Station. The Case maker is equipped with in-direct heating for hot melt glue with facility to add water which evaporates  due  to  heat.The cover duly glued is held with high speed suction for placing the boards manually. The adjustment for using small and big boards is simple & operator friendly. The Pressure rollers bind the cover with the board and stacks in the stacker.

Technical Data

Technical Specifications Model ‘A’
Open Book Case Format 460 x 800 mm
Cover Material Thickness 90-170 gsm
Board Thickness 1.4 mm – 4.0 mm
Turn – in Width 15 00 to 20 mm
Speed upto 25 Cases / hr
Glue Application From Bottom Side
Power 4.5 KW / 220 volts / 50 Hz
Dimensions (L x W x H) 3450 x 1000 x 1400 mm
Net Weight 500 Kgs
