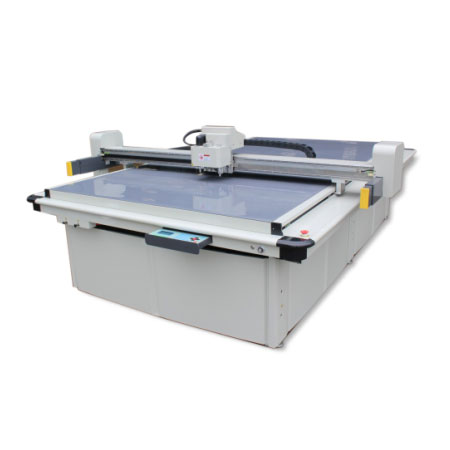

CNC flatbed sample maker plotter machine computerized

Main Features

  • Two interchangeable tools, wholw set head design,convenient to change cutting tools.
  • Four spindles high speed controller, modularizing installing, convenient for maintenance.
  • Cutting depth could be adjusted as customers need.
  • Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.
  • Corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion sheet etc.
  • Packaging, Graphic etc.

Technical Data

Modal DCZ702516 DCS701713 DCZ701310
Effective Cutting area 2500×1600 1700×1300 1300×1000
Configuration Oscillating Knife, pen, creasing tool, drag knife
Max speed 1350 mm/s
Max cutting thickness 30 mm
Smallest cutting diameter 6 mm
Precision ≤ 0.1 mm
Voltage 220V ± 10% 50 HZ
Option Video registration system, V cut knife foam knife
Occupy dimension (L*W*H) 3400x2460x1180 mm 2600x2160x1180 mm 2200x1860x1180 mm
