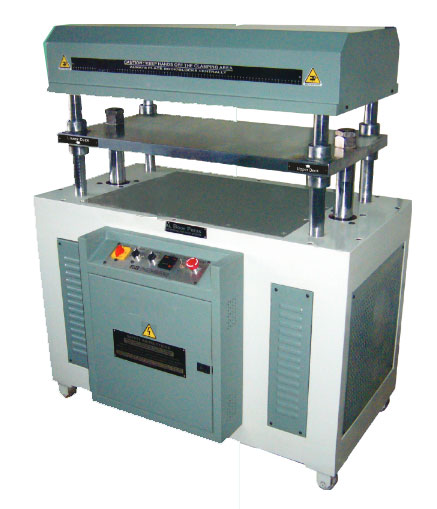

Hydraulic Book Press designed specially for Exercise Note Books/stationery Manufacturers. The platen area adequately covers 3-Up or 4-Up Exercise Note Books. The printed title can be pasted on open book-size upto 800x500mm / 1040x650mm with daylight area upto 260mm on both upper & lower decks-alternatively
Moving on both the sides and the Upper & Lower Fixed Base Platen are equipped with stainless steel plates for best results.
Centrally positioned Moving Platen is convenient for utilizing maximum idle time. While the lower deck is being used for pressing the stack of books etc, the upper deck can be loaded for next cycle.
Timer can be set to meet specific requirement of boards / cards / sheets. The system would release the stack of book from either upper / lower deck after a pre-set time. Thereby ensuring all books are pressed uniformly .
Control Panel is equipped with Mains Switch; Pump ON/OFF Switch; Switch for operating the system in Manual Mode; Timer (0-999 seconds) Manual / Auto Mode Switch and Emergency Switch. Castors are provided for maximum space utilisation.
|Description||Unit||DBP – II||DBP – III|
|Pressure Platen Size (Single)||mm||800 x 520||1040 x 650|
|Pile Height Upper Deck (Min-Max.)||mm||70 – 260||70 – 260|
|Pile Height Lower Deck (Min-Max.)||mm||70 – 260||10,000|
|System Clamp Pressure||kgs||8000||70 – 260|
|Electrical Load / Motor||kw/HP||2.25/3||2.25/3|
|Electrical Supply||380 / 415V AC 50 Hz 3Ph|
|Overall Dimension (WxDxH)||ltrs||35||35|
|Hydraulic Oil Capacity||cms||124x80x140||147x90x140|
|Net Weight (Approx.)||kgs||850||1050|
