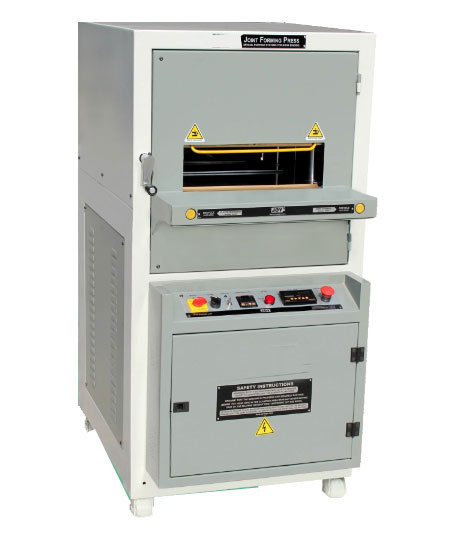

Joint Forming Press

Pressing of cased-in books and simultaneous burning-in of the JOINTS for forming perfect hinge and permanent shape with the help of temperature-controlled pressure blades (Joint Forming Bars).

These blades are spring loaded for adjusting to different depth of joints automatically and hydraulic pressure can be set from 100-300/400kgs to achieve the desired results. The barsĀ  are supplied for Flat and Rounded Spine Book-backs respectively.

Temperature of the blades is set through Digital Temperature Controller (PID) to suit properties of Glue (Adhesive), Binding material and operating speed. The PLC (Programmable Logic Controller) enables choice of single or multiple stroke/s for accurate control of burning-in for maintaining rigidity of theĀ  JOINTS and consistent results. Counter on PLC indicates number of books processed at the end of each cycle.

The system automatically releases the book on completion of the set timing cycle. Back-gauge is provided for faster production. Light Guide indicates the Joint Forming position there by reducing the make-ready time considerably. Adequate operator safety device in addition to Emergency switch incorporated.

PLC based control panel for sequencing, optimum reliability and simplified diagnostics.

Technical Data

Description Unit JFP 41 JFP 61
Book Block Size mm 410×275 610×300
Book Spine (Min-Max) mm 10 – 110 10 – 110
Book Height (Min-Max) mm 100 – 275 100 – 300
System Clamp Pressure (Adjustable) kgs 2500 5000
Joint Bar Pressure (Adjustable) kgs 100 – 300 100 – 400
Electrical Load / Motor kw / HP 1.5 / 2 2.25 / 2
Electrical Supply 400 / 440V AC 50 Hz 3Ph
Hydraulic Oil Capacity ltrs 55 75
Overall Dimension (WxDxH) cms 68x885x133 88x120x135
Net Weight (Approx.) kgs 350 600
